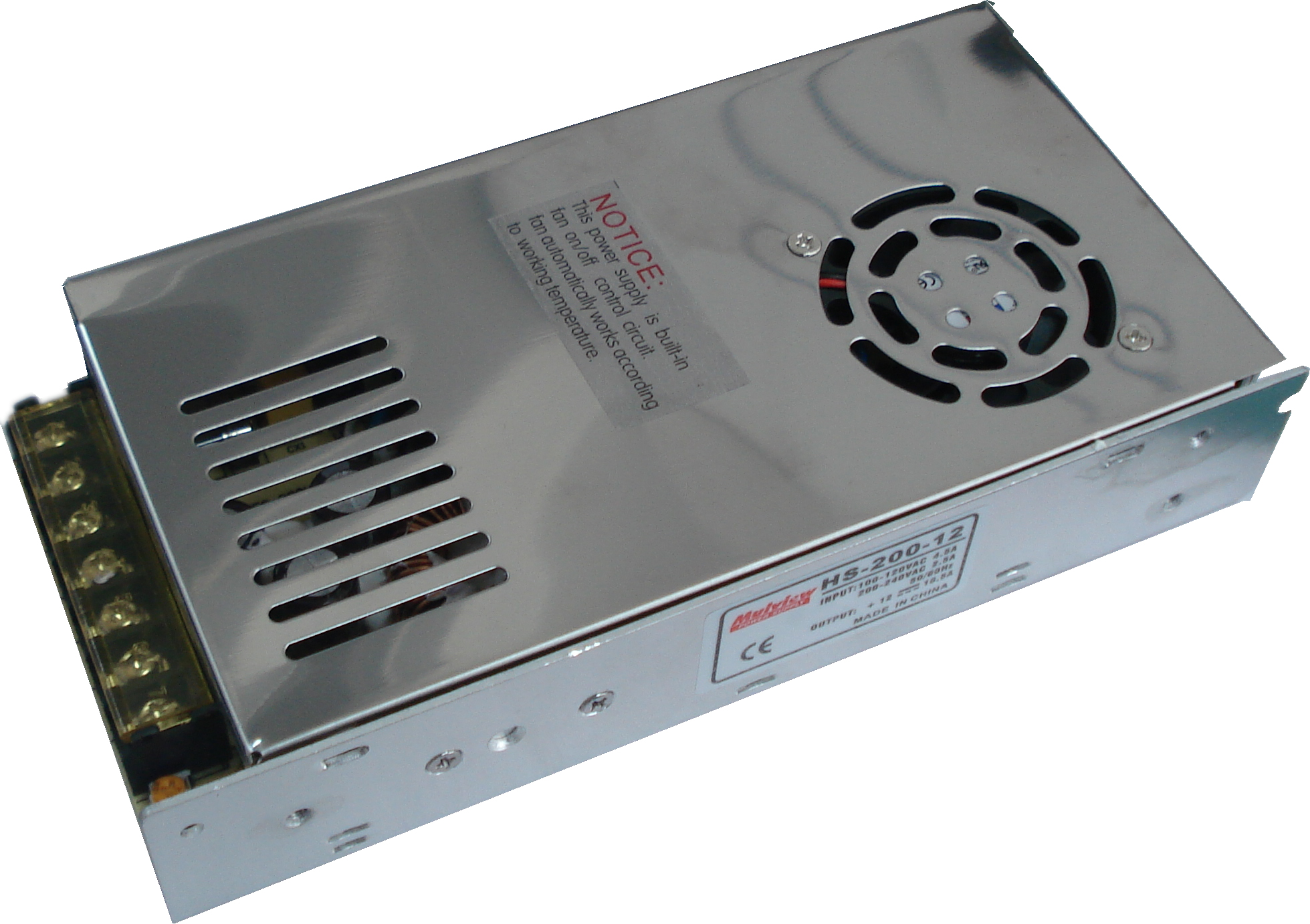

| Features Low price and high reliability AC input power suitable for the world High efficiency and low operation temperature Soft-start current can reduce the AC input impact effectively With Short-circuit and overload protection 100% full-load burning test Installed with EMI filter, minimum wave. 2 years warranty |
|||||
|
|
||||
|
|
|||||
|
|||||
|
Model |
ST-250-5 |
ST-250-12 |
ST-250-24 |
ST-250-48 |
|
DC output voltage |
5V |
12V |
24V |
48V |
|
Output voltage error（Note：2） |
±2% |
±1% |
±1% |
±1% |
|
Rated output current |
25A |
20A |
10A |
5A |
|
Output current rage |
0-25A |
0-20A |
0-810A |
0-5A |
|
Wave and noise(Note ：3） |
100mVp-p |
100mVp-p |
100mVp-p |
100mVp-p |
|
Inlet stability(Note ：4） |
±0.5% |
±0.5% |
±0.3% |
±0.3% |
|
Load stability (Note ：5） |
±0.5% |
±0.5% |
±0.3% |
±0.3% |
|
DC output power |
125W |
240W |
240W |
240W |
|
Efficiency |
78% |
80.5% |
83.5% |
83.5% |
|
Adjustable range for DC voltage |
4.5-5.5V |
10.6-13.2V |
21-28V |
43.2-52.8V |
|
AC input voltage range |
85-132VAC/170-264VAC Selected by switch, 47-63Hz；240-370VDC |
|||
|
Input current |
3.2A/115V 1.6A/230A |
|||
|
AC Inrush current |
Cold-start current 35A/115V 60A/230V |
|||
|
Leakage current |
<3.5mA/240VAC |
|||
|
Overload protection |
105%-150%Type:Foldback:current limiting reset: auto recovery |
|||
|
Over-voltage protection |
115%-135%,Protection type : Shut down o/p voltage, re-power on to recover |
|||
|
Temperature coefficient |
±0.03%/℃（0-50℃） |
|||
|
Setup rise hold up time |
100ms,50ms,20ms |
|||
|
Vibration |
10-500HZ,2G 10min,/1cycle，Period for60min，Each axes |
|||
|
Withstand voltage |
Input and output internal：1.5KVAC,Input and enclosure：1.5KVAC,Output and enclosure：0.5KVAC |
|||
|
Isolation resistance |
Input and output internal: Input and enclosure, Output and enclosure：500VDC/100MΩ |
|||
|
Working temperature and humidity |
-10℃~+60℃（Refer to output derating curve），20%~90%RH |
|||
|
Store temperature and humidity |
-20℃~+85℃,10%~95%RH |
|||
|
Overall dimension |
199×98×38mm |
|||
|
Weight |
0.8Kgs |
|||
|
Safety standards |
Meet UL 1012 requirement(Not apply for the mark) |
|||
|
EMC standards |
Meet FCC part15J Conduction classB |
|||
|
Note： |
||||
